DX CPRI patch cable 7.0mm

Share to:

Description

CPRI fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). Such products can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cable are rapidly becoming the standard connector interface.



Features

  • Openbulkhead for easy access to SFP
  • Positivemechanical feedback to operator when fully mated
  • One-handmating
  • Plughas tolerance free design, fully free floating on Z-axis
  • NoCable buckling during or after installation
  • Costeffective metal die cast bulkhead
  • Fieldinstallable version available
  • Waterproof, dust proof and corrosion resistant
  • Goodmechanical and environmental characteristics;
  • Flameretardant characteristics meet the requirements of relevant standards;
  • Themechanical characteristics of jacket meet the requirements of relevant standards;
  • Soft,flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
  • Meetvarious requirements of market and clients
  • Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for transceiverreplacement)
  • Robustbayonet locking for easy, fast, and secure mating

Specification

ITEM PARAMETER
Connector type LC,SC,FC,ST,E2000
Insertion Loss <0.3dB
Return Loss SM>50dB,APC>60dB,MM>35dB
Repeatability <=0.1
Interchangeability <=0.2dB
Durability <=0.2dB
Fiber Length 1m, 2m….. any length optional.
Length and tolerance 10cm
Operating Temperature -20C ~ +85C
Storage Temperature -20C ~ +85C



Cable Parameters

Fiber Count 2F


OD(mm)

Buffered 0.87±0.05mm
2.0mm simplex cable 2.0±0.05mm
7.0mm cable 6.8-7.0mm











Thickness(mm)

Buffered 0.3±0.05mm
2.0mm simplex cable 0.25±0.05mm
7.0mm cable 0.65±0.05mm
Nominal weight(kg/km) 42
Max.tensile Strength(N) Short-term 400
Long-term 200
Min.Bending Radius(mm) Dynamic 20D
Static 10D
Max.Crush Resistance(N/100mm2) Short-term 1000
Long-term 300


Material

Buffered PVC
2.0mm simplex cable LSZH
7.0mm cable LSZH
Color Black
Strength Member Aramid yarn
Environmental Protection RoHS COMPLIANT


Temperature range

Storage or transportation -20~70℃
Operation -20~70℃
Installation 0~60℃

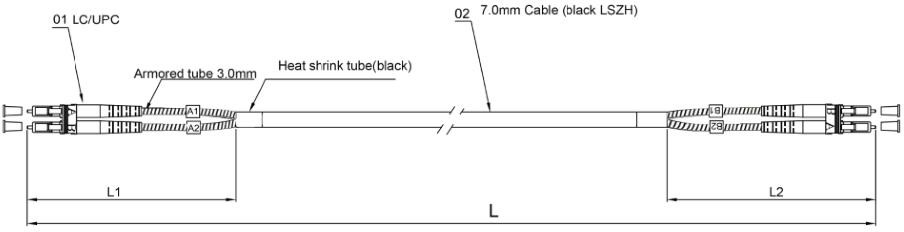

Products drawing

DX CPRI patch cable 7.0mm



Application

  • 3G,4Gbase station used
  • Aerospace& Defence
  • Equipmentdiagnosis
  • FTTA,FTTP, FTTX,WIMAX
  • BBU,RRU, RRH, LTE
