ABS Cassette PLC Splitter

Share to:

Description

Planar lightwave circuit (PLC)  splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.

OMC ‘s ABS Cassette PLC Splitter family has 1×2, 1×4, 1×8, 1×16, 1×32, 1×64, 2×2, 2×4, 2×8, 2×16, 2×32,2 x 64 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.

Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55



Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4 17.4/17.7 20.6/21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC);50(UPC);60(APC)
Directivity dB ≥55



Environmental Conditions:

Operating Temperature -40~+85
Storage Temperature -40~+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93



Dimension (mm)

Splitter 1X2 1X4 1X8 1X16 1X32 1X64
Cassette size 100×80×10 100×80×10 100×80×10 120x80x18 120x80x18 140×114×18
Splitter 2X2 2X4 2X8 2X16 2X32 2X64
Cassette size 100×80×10 100×80×10 100×80×10 120x80x18 120x80x18 140×114×18



Cable Infor

Fiber type G657A1
Loose Tube 900um,1.6mm,1.8mm,2.0mm
Connector SC, LC,FC,ST,…….
2xN Splitter Only Single Chip

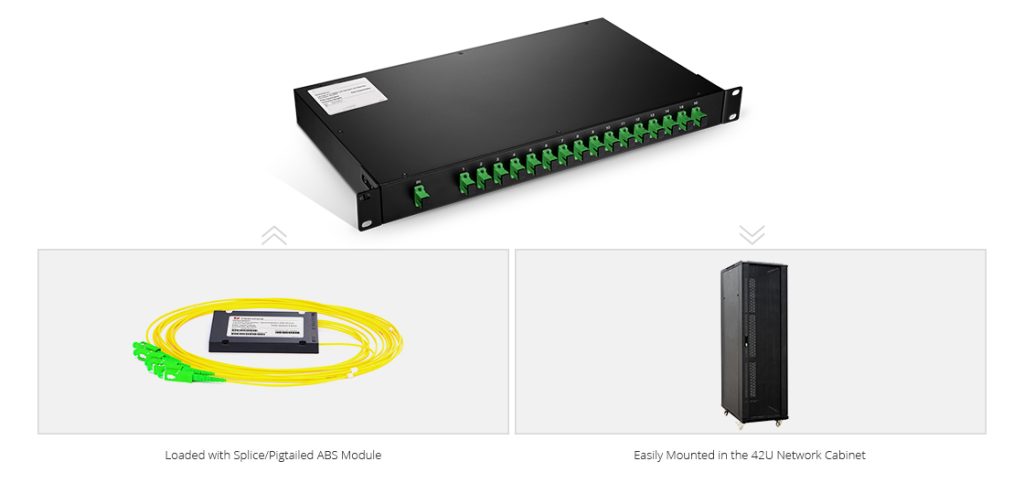

Application

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.
