This is a very popular FTTR patch cord. SC Connector assembled with a transparent 900um cable. This 900um simplex cable is much strong than standard 900um tight buffer. OMC’s transparent fiber system provides
installers with a fast and easy technique for deploying fiber seamlessly around baseboard, windows and trim work, holding firmly in place and nearly invisible to the casual observer.
| Connector | SC-SC | Ferrule End-face | UPC/APC |
| SM Insertion loss | ≤0.25dB Mean (IEC Grade C)
≤0.12dB Mean (IEC Grade B) |
Return loss | SM UPC≥50dB
SM APC≥60dB |
| Interchangeability | ≤0.2dB | 3D Geometric
interference pass rate |
100% Once requested |

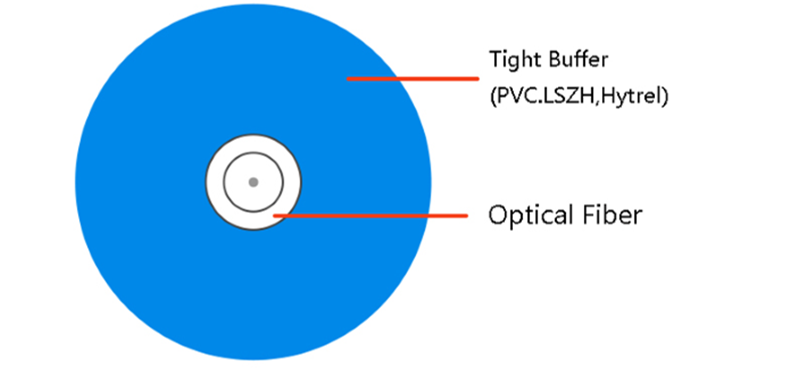

900um Invisible cable Specifications
| Fiber Type | G657A1,G657A2,G657B3 |
| Buffered type | Tight buffer |
| Coat Material | PVC, |
| OD(um) | 900 |
| Min Bending Radius | Dynamic 20D; Static 10D(expect G657) |
| Coating color | Transparent |
| Max. tensile load | Short term20N, Additional loss≤0.03; Long term 5N Additional loss≤0.03 |
| Max. crush resistance | Short term 500N/100mm,Long term100N/100mm |
