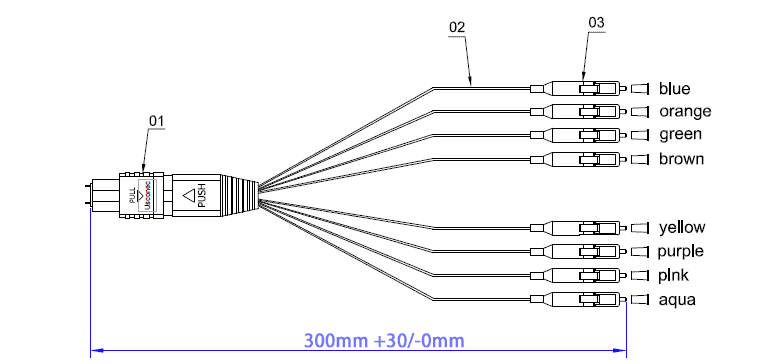

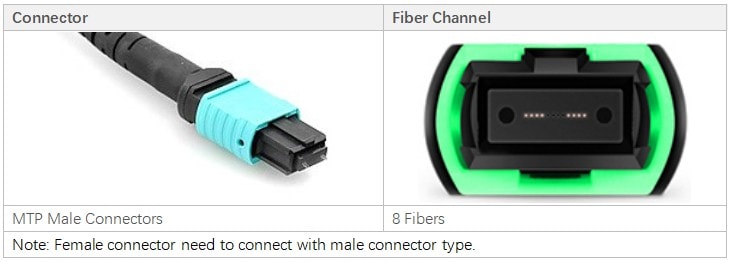

8cores MTP Male – LC Fan-out 0.9mm 30cm patch cable are designed for MTP-LC LGX module cassettes are terminated with MTP and LC connector on each end. It’s specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
SM 8F MTP- LC/SC/FC/ST Standard harness Cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.
OM3/OM4 8F MTP- LC/SC/FC/ST Standard harness Cables are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.
- 100% pre-terminated and tested in factory to ensure transfer performance.
- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability
