| Spec items. |
Single mode (APC 8-degree polished) |
Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Insertion loss (LC/SC/FC/ST)
(IEC 61300-3-6) |
≤0.3dB |
≤0.3dB |
| Return loss(MPO) |
≥60dB（8degree polishing） |
≥25dB |
| Return loss(LC/SC/FC/ST) |
APC≥60dB; UPC≥50dB |
≥35dB |
| Durability |
<0.3dBtypical change, 200 matings |
| Interchangeability |
≤0.2dB |
| Tensile strength |
>70N |
| Operating Temperature |
-40 to + 85°C |
Products Materials
| Connector |
Reference |
Housing Details |
| MPO Singlemode |
IEC 61754-7 |
SM APC: Green connector+black boot (Standard Loss MPO)
SM APC: Yellow connector+black boot (Super low loss MPO) |
| MPO Multimode |
IEC 61754-7 |
OM1&OM2 PC: Beige connector+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connector+black boot (Standard &Super low loss MPO)
OM3&OM4 PC: Heather Violet connector+black boot (Standard loss MPO) |
IEC StaggeredIEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant
40G and 100G IEEE 802.3

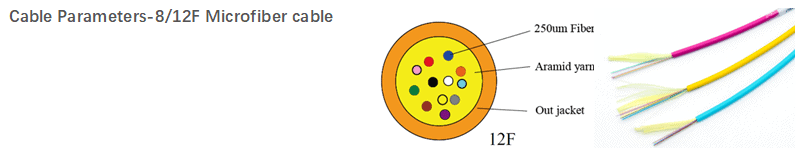

| Fiber Count |
OD(mm) |
Minimum allowable
Tensile Strength (N) |
minimum allowable
Crush Load(N/100mm) |
Minimum Bending
Radius(MM) |
| 8-12 |
3.0±0.15 |
Short-term: 180；
Long-term: 90 |
Short-term: 500；
Long-term: 150 |
Static：10D
Dynamic：20D |
Products Details

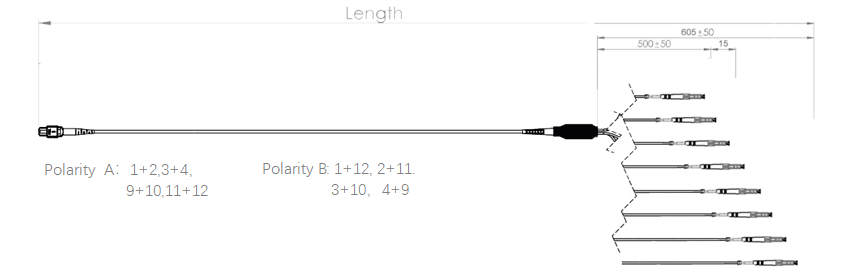

Type 1
MPO –8 x LC Simplex structure
Fanout 2.0mm or 0.9mm OD leg.
Fanout length: 0.5m
MPO can be Female and Male
Main cable OD:3.0mm
The cable’s Polarity method is not fixed. Customer can use it in Polarity A and B freely.
Other connectors such as SC,FC,E2000… are available

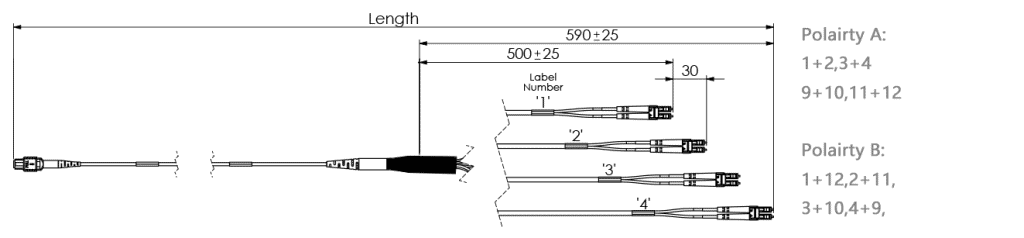

Type 2
MPO –4 x LC Duplex structure
Fanout 2.0×4.1mm/0.9mm OD leg.
Fanout length: 0.5m
MPO can be Female and Male
Main cable OD:3.0mm
The cable’s Polarity method is fixed. Customer can use it in Polarity A or B.
Other connectors such as SC,FC,E2000… are available

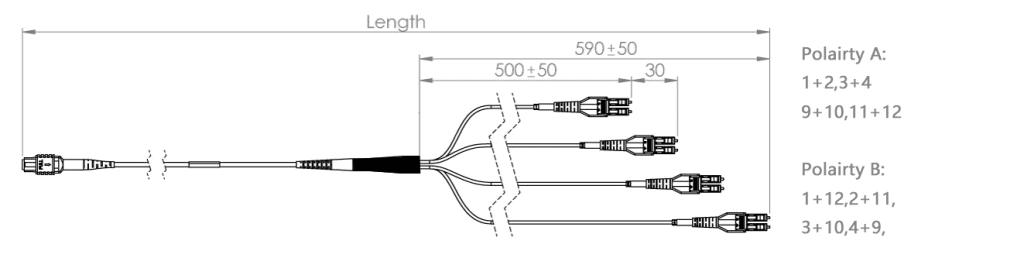

Type 3
MPO –4 x Uniboot LC structure
Fanout 2.0mm/3.0mm OD leg.
Fanout length: 0.5m
MPO can be Female and Male
Main cable OD:3.0mm
LC connector is available for many kinds of different Uni-boot LC connectors
The cable’s Polarity method is fixed. Customer can use it in Polarity A or B.
Saved fanout cable space up to 50%, easy to cable management
LC Uni-boot connector is available for many kinds of different Uni-boot
Push Pull Tab For Senko MPO
MPO End-Face 3D Interference Index
| Item (IEC-61300-3-30) |
Minimum |
Maximum |
| Radius of curvature (mm) |
ROC-X(ABS) |
2000 |
\ |
| ROC-Y(ABS) |
50mm |
\ |
| Angle |
Angle-X |
-0.2° |
-0.2° |
| Angle-Y |
APC |
7.85° |
8.15° |
| PC |
-0.2° |
-0.2° |
| Fiber height (nm) |
1000nm |
3500nm |
| Max.DH.All Fiber: |
-300nm |
300nm |
| DH.Adj: |
-300nm |
300nm |
| DH.Ave Fiber: |
-300nm |
300nm |
| Core Dip: |
SM |
N/A |
N/A |
| MM |
-200nm |
300nm |
LC/SC/FC/ST End-Face Geometry 3D Interference Index
| Items |
Connector |
PC End-face |
APC End-face |
| Radius of Curvature |
SC/FC/ST |
10~25 mm |
5~12 mm |
| LC/MU |
7~25 mm |
5~15 mm |
| Apex Offset |
≤50 um |
| Fiber Spherical Height |
+/- 100 nm |
| Angular Offset |
—— |
8°± 0.5° |
End-face Quality (LC/SC/FC/ST SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (LC/SC/FC/ST MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
Application
SM 8F MPO- LC/SC/FC/ST Staggeredharness Cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications.
OM3/OM4 8F MPO- LC/SC/FC/ST Staggeredharness Cables are optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
This 8 Fiber harness cable is used for a direct connection between QSFP+ to (4) SFP+ ports with no patch panels or intermediate trunks in between.
All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.
1, The Data Center application with high dense degree environment
2, The optical fiber to the building
3, The internal connector application in fiber equipment
