Products Materials-Connector
| Connector |
Reference |
Housing Details |
| MPO Singlemode |
IEC 61754-7 |
SM APC: Green connectors+black boot (Standard Loss MPO)
SM APC: Yellow connectors+black boot (Super low loss MPO) |
| MPO Multimode |
IEC 61754-7 |
OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)
OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)
OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO) |
IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant

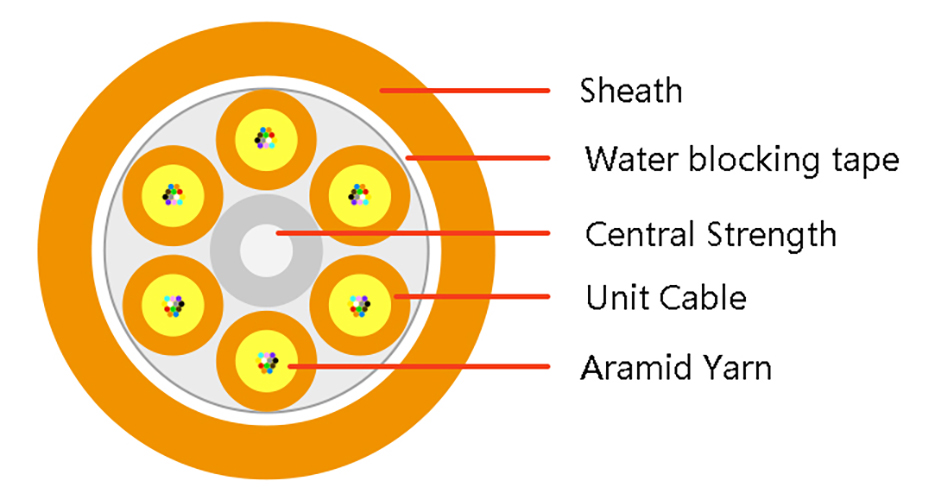

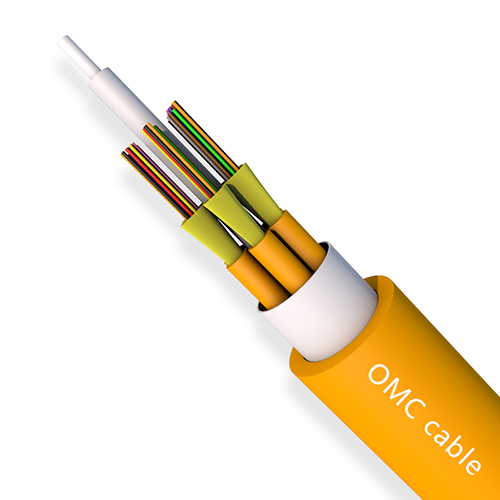

Products Materials-Cables
| Item |
Contents |
Unit |
Data |
| Fiber type |
/ |
/ |
SM G657A1,G657A2, |
| Fiber Count |
/ |
piece |
72 (6x12F) |
| Bare fiber |
OD |
um |
245±0.2 in 12 colors |
| Sub Cable |
OD |
mm |
2.9±0.1 |
| Strength member |
Material |
Aramid Yarn |
| Jacket |
material |
LSZH,PE,PVC,TPU,OFNP |
| Outer sheath |
Strength member |
Material |
Aramid Yarn |
| Jacket |
material |
LSZH,PE,PVC,TPU,OFNP |
| OD |
mm |
11.2±0.3 |
Optical Specifications
| Spec items. |
Single mode (APC 8-degree polished) |
Multimode (PC Flat polish) |
| Insertion loss (MPO)
(IEC 61300-3-34) |
Standard loss：≤0.75dB(max), ≤0.50dB(Typical)
Super Low loss：≤0.35dB(max), ≤0.20dB(Typical) |
Standard loss：≤0.6dB(max), ≤0.50(Typical)
Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical) |
| Return loss(MPO) |
≥60dB（8degree polishing） |
≥25dB |
| Durability |
<0.3dBtypical change, 200 matings |
| Interchangeability |
≤0.2dB |
| Tensile strength |
>70N |
| Operating Temperature |
-40 to + 85°C |
End-Face 3D Interference
| Item (IEC-61300-3-30) |
Minimum |
Maximum |
| Radius of curvature (mm) |
ROC-X(ABS) |
2000 |
\ |
| ROC-Y(ABS) |
50mm |
\ |
| Angle |
Angle-X |
-0.2° |
-0.2° |
| Angle-Y |
APC |
7.85° |
8.15° |
| PC |
-0.2° |
-0.2° |
| Fiber height (nm) |
1000nm |
3500nm |
| Max.DH.All Fiber |
-300nm |
300nm |
| DH.Adj |
-300nm |
300nm |
| DH.Ave Fiber |
-300nm |
300nm |
| Core Dip |
SM |
N/A |
N/A |
| MM |
-200nm |
300nm |

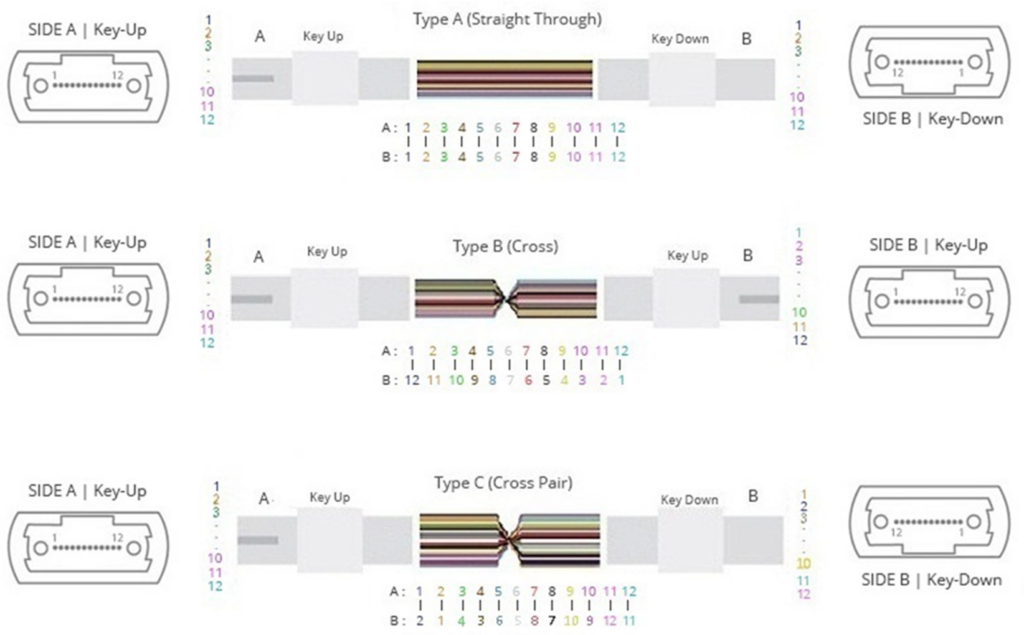

Polarity
Because 72F MPO/MTP trunk cable’s unit connector is 12F MPO/MTP， So it have same polarity as single 12F MPO/MTP trunk cable.
Drawing
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
OEM Service
1, Cable color, printing word, material of cable jacket, connector’s color
2, OEM Label, Identify ring, cable’s label，box, shipping marks
3, Different quality Level.
Features
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability
Application
The 72F(6x12F ) MPO Patch cable/trunk cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.
