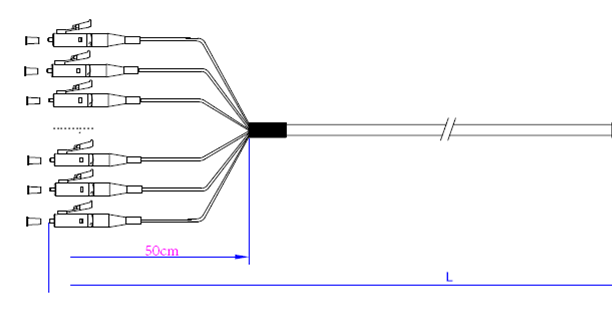

The 6-12 F micro-fiber cable pigtail is a pre-terminated with a OD of 3.5mm Unit micro-fiber cable. The fanout cable OD is 0.9mm. A fanout kits will be installed at the junction of main cable and fanout cable. This new design cable is with small OD but comes with 12F , Save your Optical Cabling space , Lower down cabling difficult , save time and cost. It’s A good solution for HD Data center cabling assemblies.
| Insertion loss | ≤0.12dB | Interchangeability | ≤0.1dB |
| Return loss | SM UPC≥50dB
SM APC≥60dB MM PC≥35dB |
Vibration | ≤0.1dB |
| Polarity | A(Tx) to B(Rx) | Maximum pulling force | 120N |
| Number of fiber | 2-12F | |
| Fiber type | SM G657A2 | |
| Fiber Color | Blue,Orange,Green,Brown,Grey,White,Red,Black,Yelllow,Purple,Pink,Aqua | |
| strength member | material | Aramid yarn |
| Loose tube | material | PBT |
| color | White | |
| diameter | Ф1.8±0.1mm | |
| Outer sheath | material | LSZH |
| color | Black | |
| diameter | 3.5±0.1mm | |
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |

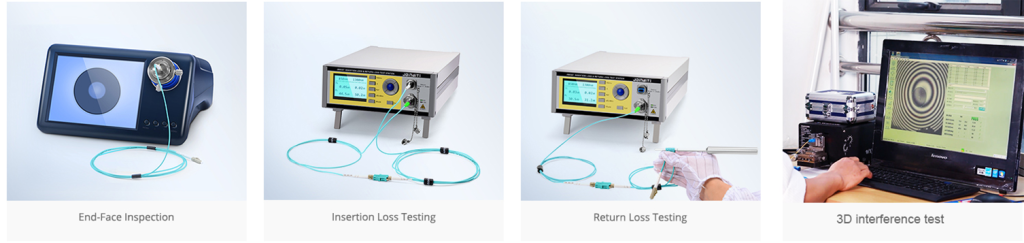

High Quality Fiber Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more secure and data transmission more reliable and stable in your network.
