4-144F Pre-terminated Patch cord

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

DIN: IEC61754-3

E2000: IEC61754-15



Share to:

Description

Pre-terminated Patch cable  also be called Bunch/Distribution patch cable or Mini breakout  patch cable. It’s a installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. They are designed for direct connector assembly with no need for splice connectors.



OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit

Ethernet and high speed Fiber Channel Perfect for fiber optic installations within a building or between two buildings.



All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.



Features

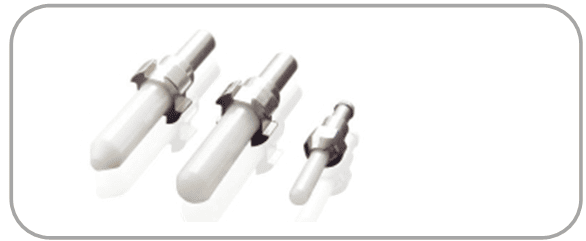

  • High quality zirconia ferrules.
  • Good repeatability and interchange.
  • Flame-retardant, rugged and durable jacket.
  • 100% optically tested for insertion loss to ensure high quality





Specification

Optical Specifications-Standard  quality

Insertion loss ≤0.25dB Mean (Standard) Interchangeability ≤0.2dB
Return loss SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

Vibration ≤0.2dB
Polarity A(Tx) to B(Rx) Maximum pulling force 660N(<12 cores)

1320N(>12 cores)



Optical Specifications-IEC Grade B quality

Insertion loss ≤0.12dB mean, ≤0.25dB max.

for >97% of sample

Interchangeability ≤0.2dB
Return loss SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

Vibration ≤0.2dB
Polarity A(Tx) to B(Rx) Maximum pulling force 660N(<12 cores)

1320N(>12 cores)



Geometric Specification( if Customer requested)

Items Parameter
Polishing PC APC
ROC SC/FC/ST 10 ~ 25 5 ~ 12
LC/MU 7~ 25 5 ~ 12
Apex Offset ≤ 50
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5



Products Materials

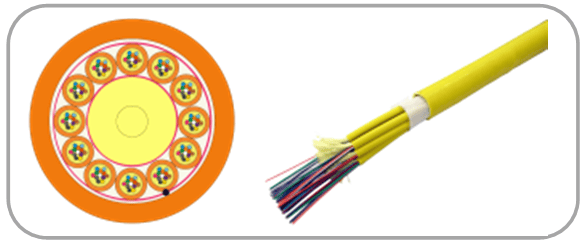

Cable Structure: Unit-tube type

Cable OD: 4F-5.0mm;6F-5.3mmOD;8F-5.6mm;12F-6.3mm;24F-8.3mm;48F-10.5mm

Jacket: PVC (Riser/OFNR),LSZH,Plenum (OFNP)

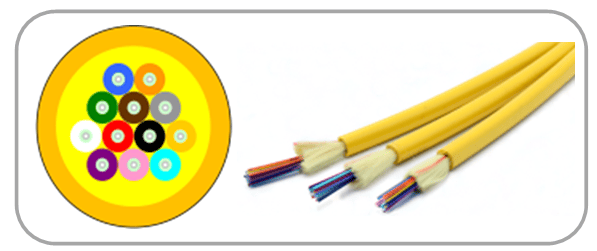

Cable Structure: Multi-tube type

Cable OD: 24F(4tubes)-15.5mm;36F(6tubes)-18.8mm;48F(4tubes)-17mm;

48F(6tubes)-20mm; 72F(6tubes)-21mm;  96F(8tubes)-25.8mm;  144F(12tubes)-28.2mm

High quality SM Ceramic ferrule, Good concentricity<0.5um

High quality MM Ceramic ferrule, Good concentricity<4.0um

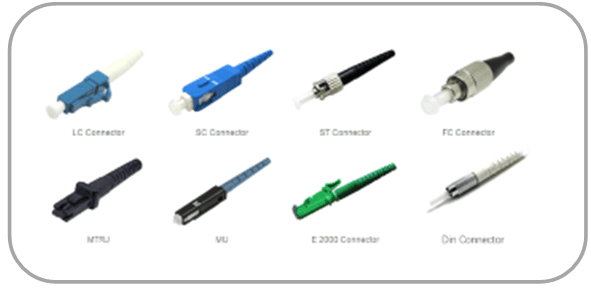

Standard connectors LC, SC, ST, FC, E2000, MU, D4, Din, LX.5, SMA are available

High precious connector guarantee Good Repeatability and Interchangeability

OEM Housing kits Color, OEM boot Colors

Customized Design for special demand



Standard Compliance

  • TIA 604 (FOCIS)
  • TIA/EIA 492AAAE
  • IEC 61754
  • IEC 60793-2-10
  • IEC61300-3-35
  • YD/T1272.1-2003
  • RoHS, ISO9001 Compliant



Application

  • Data Center
  • Enterprise
  • Fiber to the X (FTTX)
  • LAN and WAN
  • CATV Network
  • Telecommunications Network



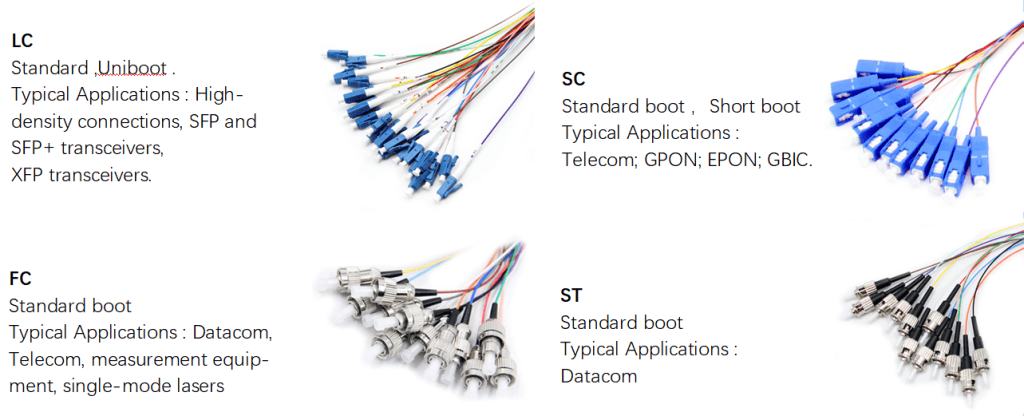

Connector Type





End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

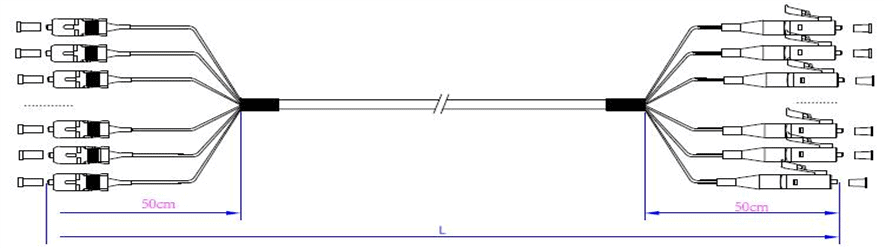

Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
