4/8/12F Ribbon Fan-out Fiber Optic Pigtail is a multi-fibers pigtail which made by Ribbon cable. The ribbon fiber fanout via a 1×12 fanout kit. The fanout cable can be 900um or 2.0mm cable.
OMC’s 4-12F Ribbon Fan-out Fiber Optic Pigtail are available in both single and multimode versions with either APC or UPC polish types.
All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.
Features
- High quality zirconia ferrules.
- Good repeatability and interchange.
- Flame-retardant, rugged and durable jacket.
- 100% optically tested for insertion loss to ensure high quality
| Connector |
SC,LC,FC,ST,E2000,MU,LX.5,DIN,D4 |
Jacket OD(mm) |
4cores:3.5×2.5mm
6cores: 3.8×2.5mm
8cores: 4.5×2.5mm
12cores: 5.0×2.5mm |
| Fiber Mode |
9/125μm, 50/125μm, 62.5/125μm, |
Jacket Color |
SM:Yellow/Blue/White;
OM1&OM2: Orange; OM3:Aqua;
OM4:Aqua/Violet/ Magenta |
| Polish |
PC,UPC,APC |
Wavelength |
SM:1310/1550nm
MM:850nm |
| Cable Type |
Multi-fibers Breakout 2.0mm unit cable |
Jacket Material |
LSZH/PVC/OFNR/OFNP |
| Insertion loss |
≤0.3dB(IEC Grade C) |
Insertion loss |
≤0.12dB(IEC Grade B) |
| Return loss |
SM UPC ≥ 50dB(min)
SM APC ≥ 60dB(min)
MM PC ≥ 35dB(min) |
Interchangeability &Vibration |
≤0.2dB |
| Operating temperature |
-40~75°C |
Storage temperature |
-45~85°C |
Products Materials
G652D,G657A1,G657A2/B2,G657B3,OM1,OM2, OM3, OM4, OM5 Fibers
4F OD:2.5×3.5mm ; 6F OD:2.5×3.8mm
8F OD:2.5×4.5mm ; 12F OD:2.5×5.0mm
PVC (Riser/OFNR)，LSZH，Plenum (OFNP) Jacket materials
High quality SM Ceramic ferrule, Good concentricity<0.5um
High quality MM Ceramic ferrule, Good concentricity<4.0um
High Quality 1×12 fanout kits for 12F ribbon fiber and ribbon cable.

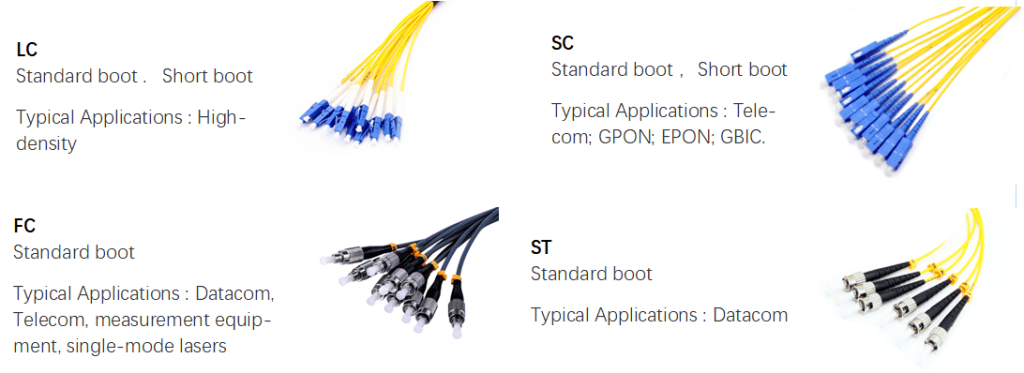

Connector Type
Geometric Specification( if Customer requested)
| Items |
Parameter |
| Polishing |
PC |
APC |
| ROC |
SC/FC/ST |
10 ~ 25 |
5 ~ 12 |
| LC/MU |
7~ 25 |
5 ~ 12 |
| Apex Offset |
≤ 50 |
| Fiber Spherical Height |
±100 |
| Angle |
± 0.5 |
8 ± 0.5 |
Polishing Method
End-face Quality (SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
End-face Quality (MM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
| B: Cladding |
65 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |
Length Tolerance
| Overall Length(L)(m) |
length of tolerance(cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
Standard Compliance
- TIA 604 (FOCIS)
- TIA/EIA 492AAAE
- IEC 61754
- IEC 60793-2-10
- IEC61300-3-35
- YD/T1272.1-2003
- RoHS, ISO9001 Compliant
Application
- Data Center
- Enterprise
- Fiber to the X (FTTX)
- LAN and WAN
- CATV Network
- Telecommunications Network
