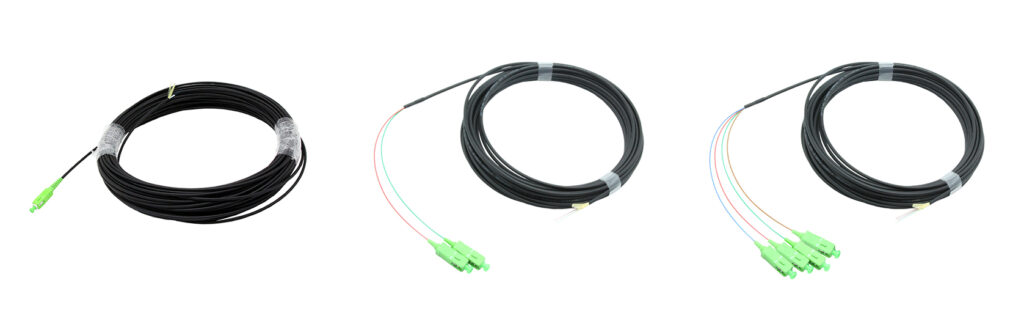

The 1-12F FTTH Drop cable pigtail is a pre-terminated with a OD of 3.5mm Central loose tube cable. The fanout cable OD is 0.9mm. A fanout kits will be installed at the junction of main cable and fanout cable. This new design cable is with small OD but comes with 12F , Save your Optical Cabling space , Lower down cabling difficult , save time and cost. It’s A good solution for HD Data center cabling assemblies.
Optical Specifications-Standard quality
| Connector | SC&LC | Polish | APC/UPC |
| Fiber Mode | 9/125μm, G657A2&G657B3 | Jacket Color | Black/White/Grey/Ivory |
| Main Cable OD | 3.5mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | LSZH&PE |
| Insertion loss | ≤0.3dB(IEC Grade C)
≤0.1dB(IEC Grade B) |
Crush Resistance(N/100mm) | Long term 100;
short term:500 |
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength（N） | Long term 80;
short term:150 |
Operation&Storage temperature | -40~85°C |

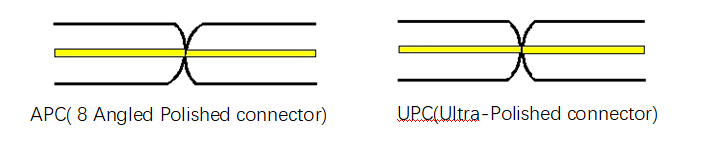

Polishing Method

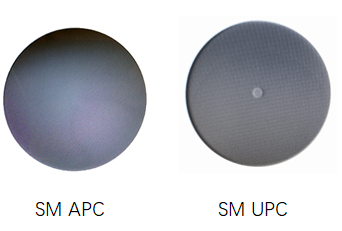

End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-
3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |

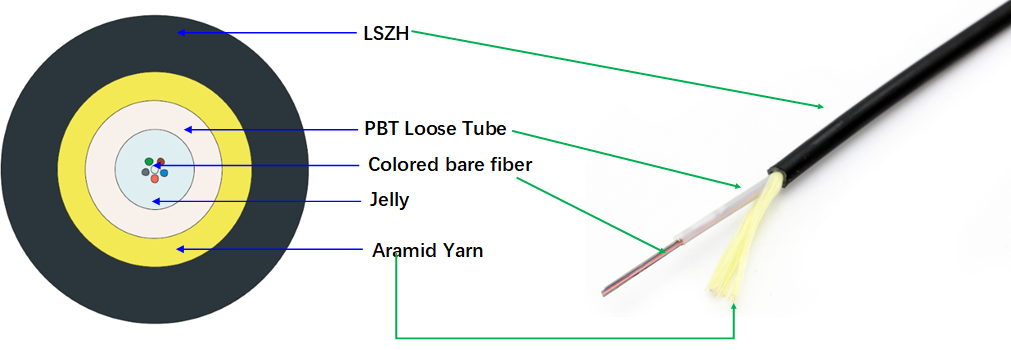

Cable structure
Simplex SM Pigtail -SCAPC 5.0mm – Rev
Technical Data:
| Items | Description | ||
| Number of fiber | 1-12F | ||
| Fiber type | G657A2 | ||
| Loose tube | Diameter(mm） | 1.8±0.1 | |
| Color | Natural | ||
| Material | PBT | ||
| Strength member | Material | Aramid yarn | |
| Tube filling compound | Material | Jelly | |
| Outer sheath | Material | LSZH | |
| Color | Black | ||
| Diameter(mm） | 3.5±0.2 | ||
| Min Bending Radius(mm) | Long term | 20D | |
| Min Bending Radius(mm) | Short term | 10D | |
| Tensile strength（N） | Long term | 80 | |
| Short term | 150 | ||
| Crush Load (N/100mm) | Long term | 100 | |
| Short term | 500 | ||
| Installation temperature | -5+50 | ||
| Storage or transportation（℃） | -20+70 | ||
| Operation and transport temperature（℃） | -20+70 | ||
Optical fiber technical parameters-SMF

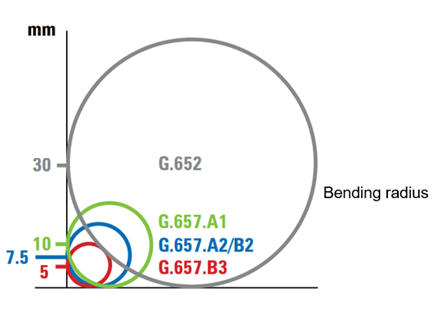

ITU recommendation G.657 specifies two classes of single-mode bend insensitive fiber patch cables: G.657A and G.657B. Each category (A and B) is then divided into two sub-categories: G.657.A1, G.657.A2 and G.657.B1, G.657.B2. The minimum bend radius of G.657.A1 fibers is 10 mm, of the G.657.A2 and G.657.B1 fibers is 7.5 mm and of the G.657.B2 fibers is 5 mm. Among, ITU-T G.657.A1 and ITU-T G.657.A2 fibers are fully compliant with ITU-T G.652.D fibers.
| Item | Unit | Specification |
| Attenuation | dB/km | 1310nm≤0.4 ；
1550nm≤0.3 |
| Dispersion | Ps/nm. km | 1285~1330nm≤3.5，
1550nm≤18.0 |
| Zero dispersion wavelength | Nm | 1300~1324 |
| Zero dispersion slope | Ps/nm. km | ≤0.095 |
| Fiber cutoff wavelength | Nm | ≤1260 |
| Mode field diameter | Um | 9.2±0.5 |
| Mode field concentricity | Um | ≤0.8 |
| Cladding diameter | um | 125±1.0 |
| Cladding non-circularity | % | ≤1.0 |
| Coating/cladding concentricity error | Um | ≤12.5 |
| Coating diameter | um | 245±10 |
| Bending, dependence induced attenuation | 1550nm,
1turns,32mm diameter 100rums,60mm diameter |
≤0.5 dB |
| Proof test | kpsi | ≥100 |
Application
9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.
50/125 OM2 multimode fiber optic cable is ideal for connecting 1000BASE-SX, SFP transceivers etc. for gigabit Ethernet and fiber channel applications.
50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
50/125 OM4/OM5 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.
