3-144F Micro-Fiber fanout Patch Cord

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

DIN: IEC61754-3

E2000: IEC61754-15

Share to:


High Quality and Cost-effective 3-144F Micro-Fiber Pre-terminated Patch Cord

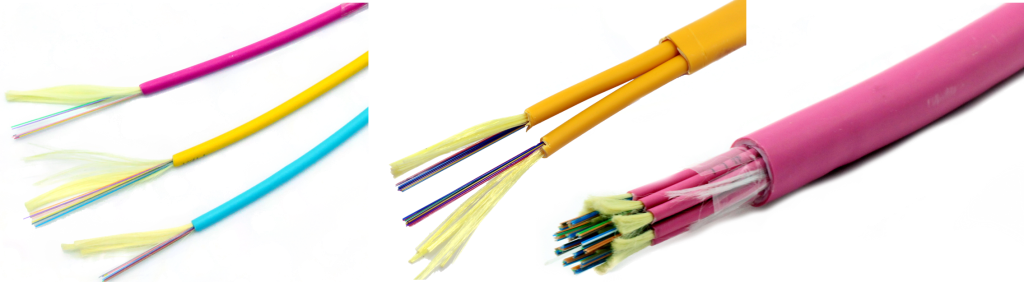

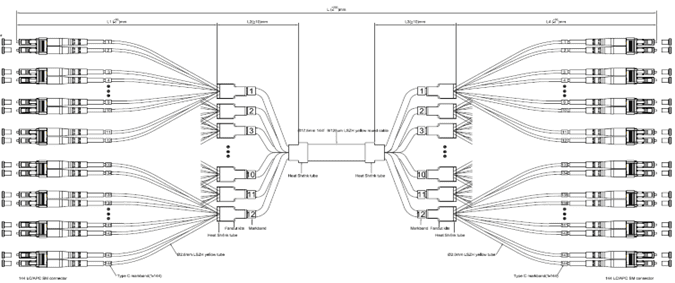

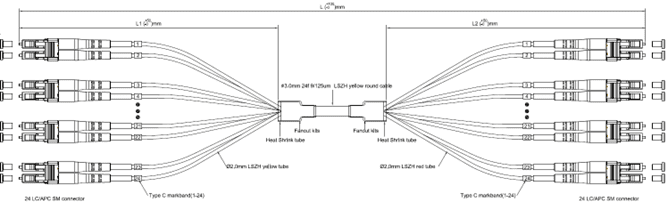

3-144F Micro-Fiber fanout Patch Cord is a kind of multi-fibers assemblies. The 3-144F micro-fiber cable Patch cables is a pre-terminated with a OD of 2.0mm/3.0mm Unit micro-fiber cable. The fanout cable OD is available with 0.9mm/2.0mm. A fanout kits will be installed at the junction of main cable and fanout cable.


This new design cable is with small OD but comes with 144F Max , Save your Optical Cabling space , Lower down cabling difficult , save time and cost. It’s A good solution for HD Data center cabling assemblies.



  • 100% pre-terminated and tested in factory to ensure transfer performance.
  • Rapid configuration and networking, reduce installation time.
  • Supports 40G and 100G network applications.
  • Low insertion loss and added loss.
  • Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
  • High back loss, small volume, light weight.
  • End-face geometry and quality superior than IEC and Telcordia standards.
  • LSZH, OFNP, OFNR cable jacket.
  • Mechanical performance: IEC 61754-20 standard.
  • RoHS and REACH materials compliant.




Connector SC,LC,FC,ST,E2000,MU,LX.5,DIN,D4 Cable Structure 12/24F: Uni-tube desgin

24-144F: Multi-tube desgin

Fiber Mode 9/125μm, 50/125μm, 62.5/125μm, Jacket Color SM:Yellow/Blue/White;

OM1&OM2: Orange; OM3:Aqua;

OM4:Aqua/Violet/ Magenta

Polish PC,UPC,APC Wavelength SM:1310/1550nm


Cable Type Multi-fibers Breakout 0.9mm unit cable Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM P ≥ 35dB(min)

Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C


Geometric Specification (only for 3D interferometer tested)

 Items  Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
  LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset        —— 8°± 0.5°


Cable Details:

Fiber number 12 24 Flat 24/48 36 & 48 &72 72 96 144
Subunit diameter (mm) / / 2.9±0.1 2.9±0.1 2.9±0.1 2.9±0.1 2.9±0.1
Cable diameter(mm) 2.9±0.1 2.9±0.1 (4.2±0.3)x(7.6±0.4) 9.0±0.3 11.2±0.3 13.5±0.3 17.5±0.3
Approx. Cable weight


(LSZH6.3)/(PVC 4.8) (LSZH9.0)/(PVC 7.5) (LSZH 52)

/(PVC 44)

(LSZH 93)

/(PVC 86)

(LSZH 106)

/(PVC 96)

(LSZH 146)

/(PVC 135)

(LSZH 260)

/(PVC 224)

Max. loading



100N/30N 100N/30N 200N/80N 1000N/300N
Temperature rating

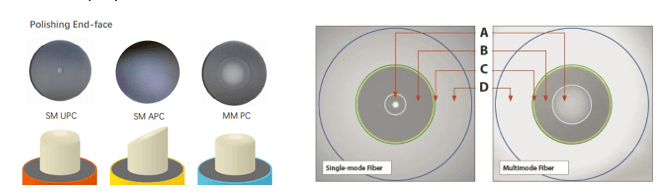

End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None


End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None


Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0
