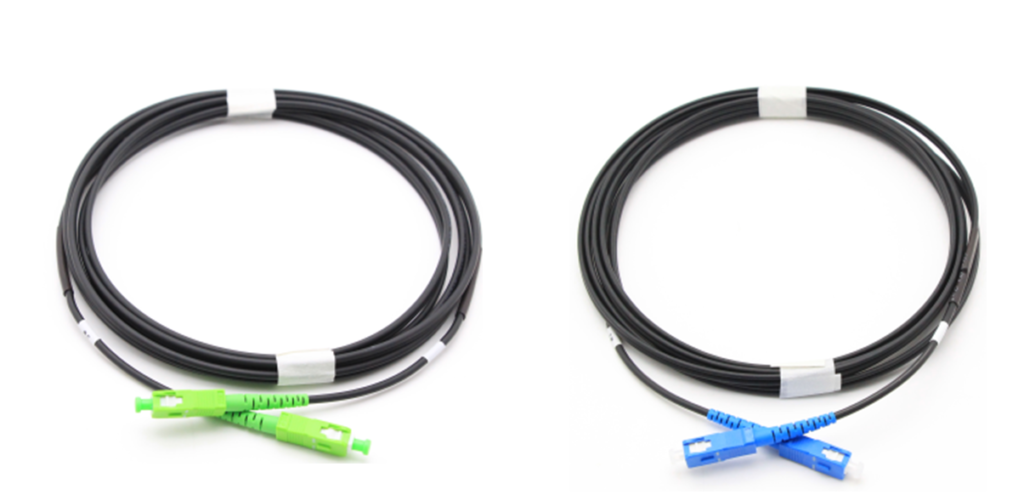

It’s a kind of patch cord/Pigtail which assembly with 3.0×5.4mm fig 8 high tensile FTTH Drop Cable with LSZH Jacket. With easy accessibility to the fiber and simple installation, The FIG 8 FTTH Drop cable can be directly connected to the homes. This is a last cable in FTTH project. Used widely between Fact plate, terminal box between ONU/ONT.

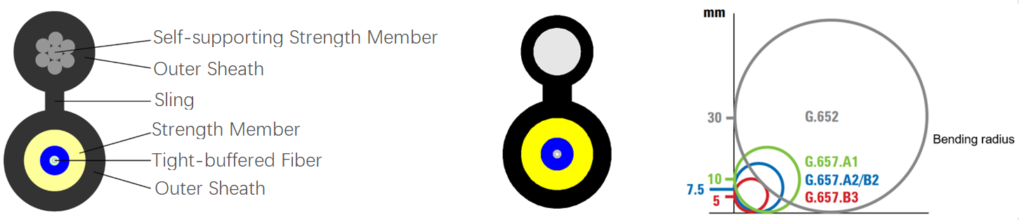

Cable structure
3.0×5.4mm fig 8 Type FTTH Drop Cable with LSZH Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed with Aramid yarn and LSZH sheath. A Solid steel message wire or stranded steel wire joint in as supporting wire for Aerial installation. With small diameter, water-resistant, soft and bendable characteristics, it’s easy to deploy and maintenance in FTTX project.
Cable Technical Data
| Number of fiber |
1F |
| Fiber |
Type |
G657A2&G657B3 |
| color |
Blue |
| Tight buffer or Semi-tight buffer |
material |
LSZH |
| color |
Blue |
| diameter |
0.9±0.05mm |
| Strength member |
material |
Aramid yarn(1000D*5) |
| Self-supporting Strength Member 1 |
Material&OD |
Stranded Steel Wire 7*0.33mm |
| Self-supporting Strength Member 2 |
Material&OD |
Solid Steel Wire 1.2mm |
| Outer sheath |
material |
LSZH |
| color |
Black |
| OD |
（2.1±0.1）mm×（2.9±0.1）mm—（5.4±0.15）mm |
| Cable weight(kg/km) |
21 kg/km |
| Span |
80m |
| Tensile load（N) |
Long term: 300N & Short term:600N(solid) 660N(Stranded) |
| Crush resistance (N/10 cm) |
Long term: 100N & Short term:500N |
| Operation temperature range |
-45 ~ +85°C |
| Installation temperature range |
-10 ~ +60°C |
| Storage temperature range |
-45 ~ +85°C |
Connector’s Standard:
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Optical Specifications
| Connector |
SC&LC |
Polish |
APC/UPC |
| Fiber Mode |
9/125μm, G657A2&G657B3 |
Jacket Color |
Black/White/Grey/Ivory |
| Main Cable OD |
3.0mm |
Wavelength |
SM:1310/1550nm |
| Cable Structure |
Simplex |
Jacket Material |
LSZH |
| Insertion loss |
≤0.3dB(IEC Grade C)
≤0.1dB(IEC Grade B) |
Crush Resistance(N/100mm) |
Long term 100;
short term:500 |
| Return loss |
SM APC ≥ 60dB(min) |
Interchangeability &Vibration |
≤0.2dB |
| Tensile Strength（N） |
Long term 200;
short term:450 |
Operation&Storage temperature |
-40~85°C |

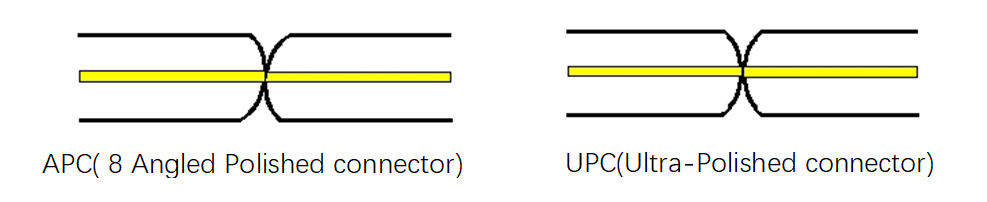

Polishing Method

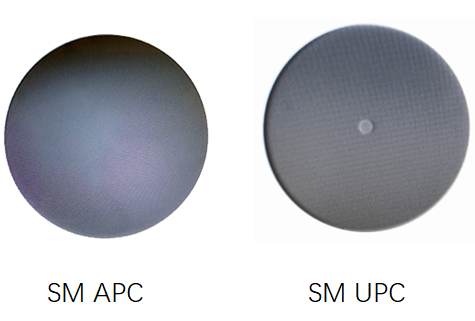

End-face Quality (SM)
| Zone |
Range (μm) |
Scratches |
Defects |
Reference |
| A: Core |
0 to 25 |
None |
None |
IEC 61300-
3-35:2015 |
| B: Cladding |
25 to 115 |
None |
None |
| C: Adhesive |
115 to 135 |
None |
None |
| D: Contact |
135 to 250 |
None |
None |
| E: Rest of ferrule |
None |
None |

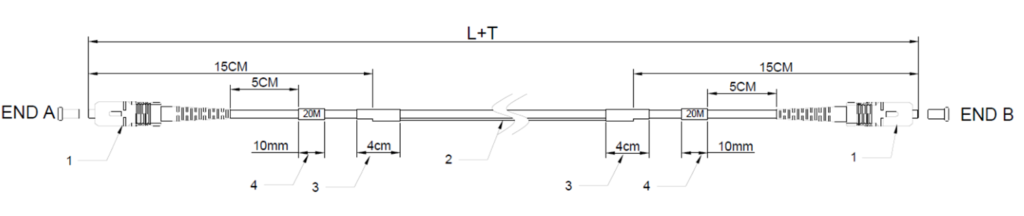

Length Tolerance
| Overall Length(L) (m) |
length of tolerance (cm) |
| 0<L<1 |
+5/-0 |
| 1<L<10 |
+10/-0 |
| 10<L<40 |
+15/-0 |
| 40<L |
+0.5% x L/-0 |
Application
FTTX Access Networks
Fiber Optic Communication System
FTTH (Fiber to The Home) Indoor Cabling project
Optical fiber connected and transmitted equipment
