3.0mm TPU Round FTTH Drop cable patch cord

Share to:

Description

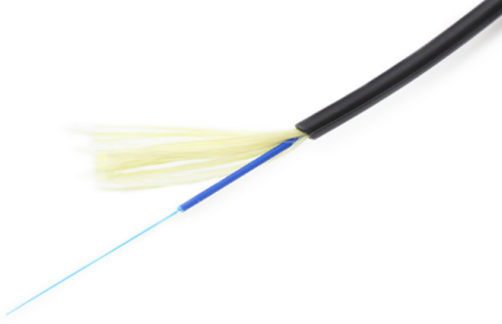

It’s a kind of patch cord/Pigtail which assembly with 3.0mm Round high tensile FTTH Drop Cable with TPU Jacket. With easy accessibility to the fiber and simple installation, The TPU FTTH Drop cable can be directly connected to the homes. This is a last cable in  FTTH project. Used widely between Fact plate, terminal box between ONU/ONT.



Cable structure

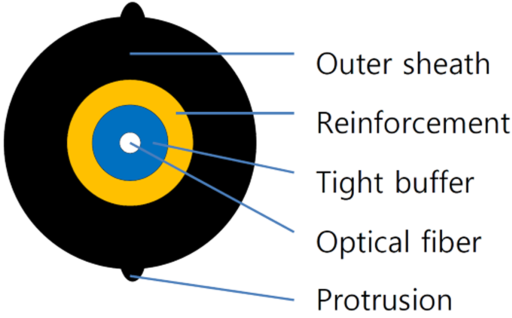

3.0mm Round FTTH Drop Cable with TPU Jacket use Simplex round structure, A 900um tight buffer placed inside the cable. Then the cable is completed  with Aramid yarn and TPU sheath. The TPU cable jacket has excellent physical and mechanical properties, high strength, high elasticity, high wear resistance, Excellent chemical resistance, resistant to erosion by acids, alkalis, and other chemicals. With small diameter, soft and bendable characteristics, it’s easy to deploy and maintenance. It’s the best choice for FTTX project.



Specification

Cable Technical Data

Number of fiber 1F

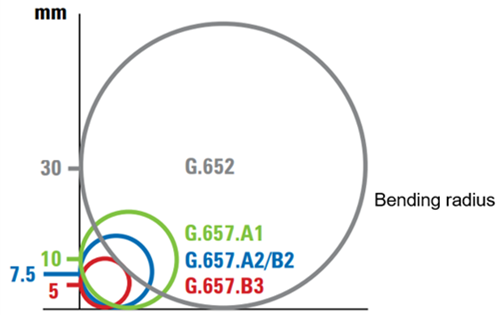

Fiber Type G657B3
color Blue
Tight buffer or Semi-tight buffer material LSZH
color Blue
diameter 0.9±0.05mm
strength member material Aramid yarn
Outer sheath material TPU
color Black
OD 2.9±0.1mm
Cable weight(kg/km) 7-8 kg/km
Span 80m
Tensile load(N) Long term: 260N & Short term:800N
Crush resistance (N/10 cm 1000
Operation temperature range -45 ~ +85°C
Installation temperature range -10 ~ +60°C
Storage temperature range -45 ~ +85°C



Connector’s Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

High quality SM ceramic ferrule, Good concentricity<0.5um



Optical Specifications

Connector SC Polish APC
Fiber Mode 9/125μm, G657A2 Jacket Color Black/White/Grey/Ivory
Cable OD 3.0mm Wavelength SM:1310/1550nm
Cable Structure Simplex Jacket Material TPU
Insertion loss 0.3dB(IEC Grade C)

0.1dB(IEC Grade B)

Crush Resistance(N/100mm) Long term 100;

short term:500

Return loss SM APC ≥ 60dB(min) Interchangeability &Vibration ≤0.2dB
Tensile Strength(N) Long term 200;

short term:450

Operation&Storage temperature -40~85°C



Polishing Method

APC( 8 Angled Polished connector)



End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Length Tolerance

Overall Length(L) (m) length of tolerance (cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Application

FTTX Access Networks

Fiber Optic Communication System

FTTH (Fiber to The Home) Indoor Cabling project

Optical fiber connected and transmitted equipment
