24F MPO(Male) -LC Fan-out 0.9mm patch cord

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15

Share to:

Description

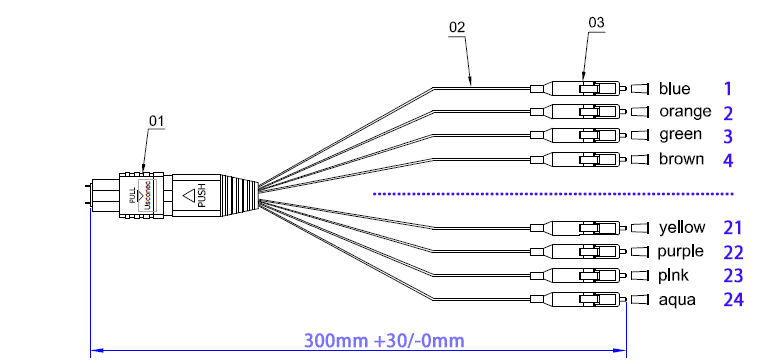

24cores MPO Male – LC Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end.

24F MPO- LC/SC/FC/ST Fanout 0.9mm cable is designed for 100GBASE-SR10 CXP/CFP Interconnect Solution,100GBASE-LR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 24 Fiber harness cable is used for connecting (12) SFP+ into a MPO adapter panel and MPO trunk.

Features:

100% pre-terminated and tested in factory to ensure transfer performance.
Low insertion loss, high return loss
MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
Economical solution for mass-termination of fiber
Designed for low loss and standard loss SM and MM applications
Ruggedized round cable, oval cable and bare ribbon options available
Color coded housings available to differentiate fiber type, polish type and/or connector grade
Good in repeatability and exchangeability

Specification

MPO-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification:

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard loss：≤0.75dB(max), ≤0.35dB(Typical) Super Low loss：≤0.35dB(max), ≤0.20dB(Typical)	Standard loss：≤0.6dB(max), ≤0.35(Typical) Super Low loss：≤0.35dB(max) , ≤0.20dB(Typical)
Insertion loss (LC/SC/FC/ST) (IEC 61300-3-6)	≤0.3dB	≤0.3dB
Return loss(MPO)	≥60dB（8degree polishing）	≥25dB
Return loss(LC/SC/FC/ST)	APC≥60dB; UPC≥50dB	≥35dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

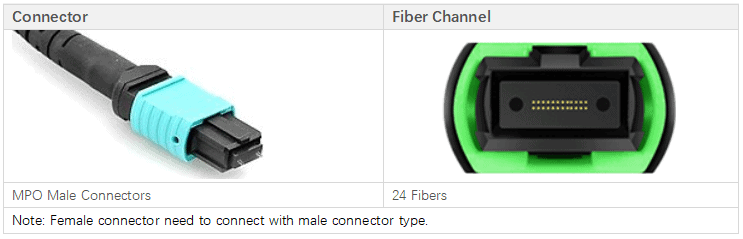

MPO Connector’s Details:

Connector

Reference

Housing Details

MPO Single Mode

IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode

IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

Meets IEC Standard IEC-61754-7;IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
Structured cabling per TIA-568-C
10G Fiber Channel Compliant

40G and 100G IEEE 802.3

MPO End-Face 3D Interference Index

Item (IEC-61300-3-30)			Minimum	Maximum
Radius of curvature (mm)	ROC-X(ABS)		2000	\
	ROC-Y(ABS)		50mm	\
Angle	Angle-X		-0.2°	-0.2°
	Angle-Y	APC	7.85°	8.15°
		PC	-0.2°	-0.2°
Fiber height (nm)			1000nm	3500nm
Max.DH.All Fiber:			-300nm	300nm
DH.Adj:			-300nm	300nm
DH.Ave Fiber:			-300nm	300nm
Core Dip:	SM		N/A	N/A
	MM		-200nm	300nm

LC/SC/FC/ST End-Face Geometry 3D Interference Index

Items	Connector	PC End-face	APC End-face
Radius of Curvature	SC/FC/ST	10~25 mm	5~12 mm
	LC/MU	7~25 mm	5~15 mm
Apex Offset		≤50 um
Fiber Spherical Height		+/- 100 nm
Angular Offset		——	8°± 0.5°

LC/SC/FC/ST End-face Quality (SM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None

LC/SC/FC/ST End-face Quality (MM)

Zone	Range (μm)	Scratches	Defects	Reference
A: Core	0 to 65	None	None	IEC 61300-3-35:2015
B: Cladding	65 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None
