24F MPO-MPO Patch cord

Share to:

Description

MPOMPO 3.0mm LSZH Patch cable/trunk cable. MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.



Features:

  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability



Specification

Spec items. Single mode (APC 8-degree polished) Multimode (PC Flat polish)
Insertion loss (MPO)

(IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.50dB(Typical)

Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.50(Typical)

Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Return loss(MPO) ≥60dB(8degree polishing) ≥25dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C



Products Materials

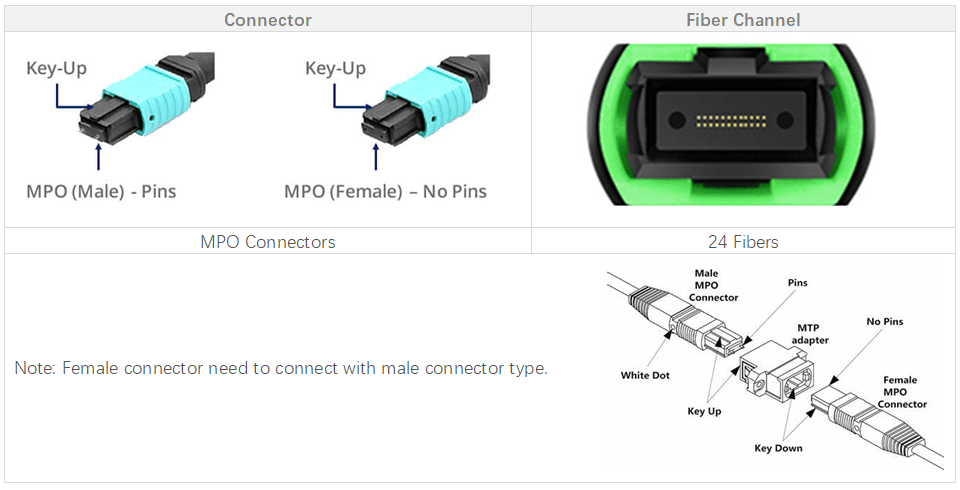

  Connector Reference Housing Details
MPO Singlemode IEC 61754-7 SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)

MPO Multimode IEC 61754-7 OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)

IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant

Structured cabling per TIA-568-C

10G Fiber Channel Compliant

40G and 100G IEEE 802.3

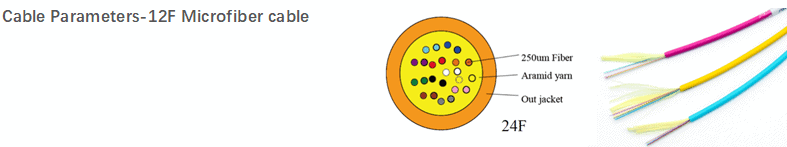

Fiber Count OD(mm) Minimum allowable

Tensile Strength (N)

minimum allowable

Crush Load(N/100mm)

Minimum Bending

Radius(MM)

24 3.0±0.15 Short-term:  180;

Long-term:  90

Short-term:  500;

Long-term:  150

Static:10D

Dynamic:20D



MPO End-Face 3D Interference Index

Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000 \
ROC-Y(ABS) 50mm \
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip: SM N/A N/A
MM -200nm 300nm

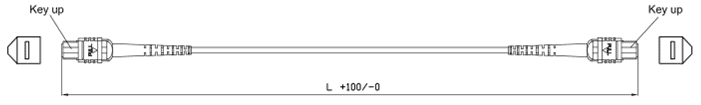

 MPO-MPO 12F Trunk cable drawing.

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Application:

All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.
