19‘ 1RU Slide Rail Rack mount Patch panel- 2 Plastic FAP

Share to:


The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in Optical Network. It is available for the distribution and terminal connection of various kinds of optical fiber system.

This rack mount fiber optic patch panel is a 1 Rack Unit (1U/1RU) high density distribution unit that provides 2pcs of Plastic Fiber adapter panel,It’s up to 24 fibers when utilizing 2pcs of our Plastic Fiber adapter panel.

OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/E2000/MPO adapter, the box can be installed on the indoor wall and terrace.


Features and Advantages

  • Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
  • The box has a pothook, which is convenient to install and dismantle
  • The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
  • The box is of unique structure, reasonable layout, and has adequate room for operation
  • Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
  • The indoor type is of excellent seal performance, which could prevent water from entering effectively
  • Can be installed with SC/LC/FC/STadapter
  • Up to 48 cores splice capacity MAXin 1U patch panel
  • Rack Mount andSliding drawer design both available


Part No.  LP2xxxx Material CRS Cold rolled steel
Connection Port 6 Ports SC/FC/ST/LC/E2000 Dimensions (HxWxD) 484*315.8*44.5mm


Product Name 19‘ 1RU Slide Rail Rack mount Patch panel- 2 Plastic FAP
Fiber Adapter panel Plastic material, 2pcs
Installation Standard EIA 19″ Rack Mountable
Compliant TIA/EIA-568-C.3

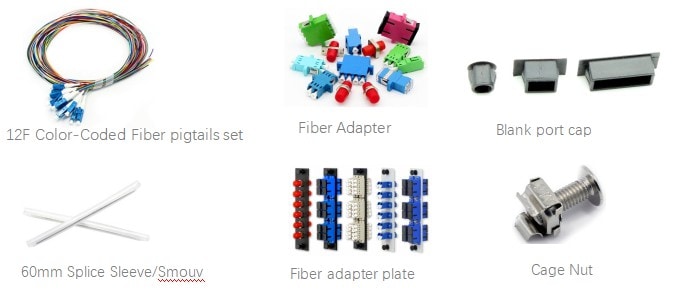

Full loaded Accessories
