12F MPO-LC Staggered harness Cable

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15

Share to:

Description

12 cores MPO to 6 LC Duplex( 6xLC uniboot;12 LC Simplex) Staggered harness Cables assemblies.



MPO- LC/SC/FC/ST Staggered harness Cables are terminated with MPO and LC/SC/FC/ST connector on both ends. The 12pcs(6pcs for LC uniboot;12 LC Simplex) fanout cables are optimized for 40G QSFP+ PLR4 to 10G SFP+ LR optics direct connection and high-density data center applications. have staggered length . It’s specifically designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.



12F MPO- LC/SC/FC/ST Staggered harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.



Features:

  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and Staggered loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability

Specification

Spec items. Single mode (APC 8-degree polished) Multimode (PC Flat polish)
Insertion loss (MPO)

(IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.50dB(Typical)

Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.50(Typical)

Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Insertion loss (LC/SC/FC/ST)

(IEC 61300-3-6)

≤0.3dB ≤0.3dB
Return loss(MPO) ≥60dB(8degree polishing) ≥25dB
Return loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB ≥35dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C



Products Materials

  Connector Reference Housing Details
MPO Singlemode IEC 61754-7 SM APC: Green connector+black boot (Standard Loss MPO)

SM APC: Yellow connector+black boot (Super low loss MPO)

MPO Multimode IEC 61754-7 OM1&OM2 PC: Beige connector+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connector+black boot (Standard &Super low loss MPO)

OM3&OM4 PC: Heather Violet connector+black boot (Standard loss MPO)

IEC Staggered IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant

Structured cabling per TIA-568-C

10G Fiber Channel Compliant

40G and 100G IEEE 802.3



Cable Parameters-12F Microfiber cable

Fiber Count OD(mm) Minimum allowable

Tensile Strength (N)

minimum allowable

Crush Load(N/100mm)

Minimum Bending

Radius(MM)

12 3.0±0.15 Short-term:  180;

Long-term:  90

Short-term:  500;

Long-term:  150

Static:10D

Dynamic:20D



Products Details

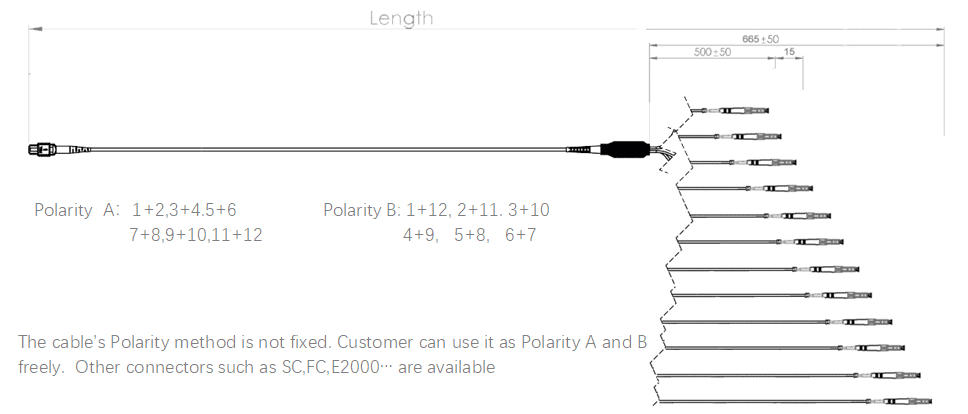

Type 1

MPO –12 x LC Simplex structure



Fanout 2.0mm or 0.9mm OD leg.

Fanout length: 0.5m

MPO can be Female and Male

Main cable OD:3.0mm

The cable’s Polarity method is not fixed. Customer can use it as Polarity A and B

freely.  Other connectors such as SC,FC,E2000… are available

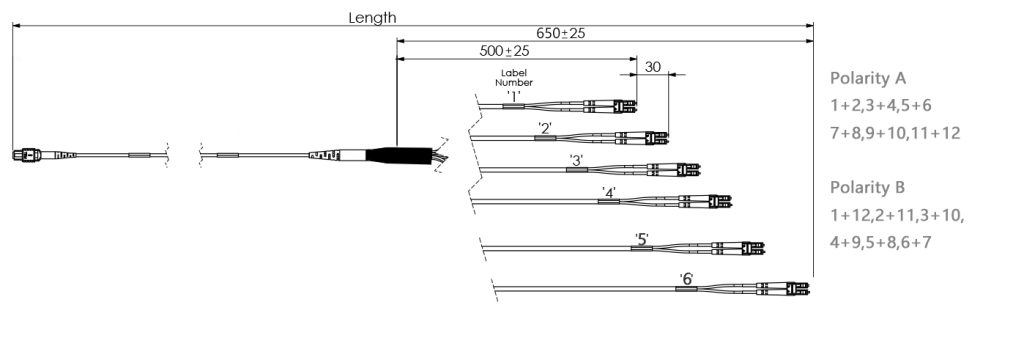

Type 2

MPO –6 x LC Duplex structure



Fanout 2.0×4.1mm/0.9mm OD leg.

Fanout length: 0.5m

MPO can be Female and Male

Main cable OD:3.0mm

The cable’s Polarity method is fixed. Customer can use it in Polarity A or B.

Other connectors such as SC,FC,E2000… are available



Type 3

MPO –6 x Uniboot LC structure



Fanout 2.0mm/3.0mm  OD leg.

Fanout length: 0.5m

MPO can be Female and Male

Main cable OD:3.0mm

The cable’s Polarity method is fixed. Customer can use it in Polarity A or B.

Saved fanout cable space up to 50%, easy to cable management

LC Uni-boot connector is available for many kinds of different Uni-boot



Push Pull Tab For Senko MPO



MPO End-Face 3D Interference Index

Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000 \
ROC-Y(ABS) 50mm \
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip: SM N/A N/A
MM -200nm 300nm



LC/SC/FC/ST End-Face Geometry 3D Interference Index

 Items  Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset        —— 8°± 0.5°



End-face Quality (LC/SC/FC/ST SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (LC/SC/FC/ST MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Application

12F MPO- LC/SC/FC/ST Staggered harness Cables designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications.



All of OMC’s MPO Connectors are from Senko/Nissin/Sumitomo. MPO Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.
