12F Mini IP (MPO)-Mini IP(MPO) SM 5.0mm Patch cord

Share to:

Description

It’s a kind of FTTH patch cord assembly with Double sheath 5.0mm FTTH Drop Cable.It adopts lower insertion loss MPO technologies, and compact cable structure, achieving fast deployment, high reliability, and durability.

This is a last cable in FTTH project. Used widely between MST,FAT, FTTX Pro-connectorized terminal box tec. With easy accessibility to the fiber and simple installation.



Specification

Patch cord’s Optical Specifications

Connector Dual-end Mini IP(MPO )

female connectors 12F

Polish APC-APC
Fiber Mode 9/125μm, G657A2 Jacket Color Black
Cable OD 5.0±0.2mm Wavelength SM:1310/1550nm
Cable Structure Simplex Jacket Material LSZH
Insertion loss ≤0.35dB(Super low loss)

≤0.7dB(Standard loss)

Return loss SM APC ≥ 60dB(min)
Operation Temperature -10  ~ +70°C Install&Storage temperature -40  ~ +70°C



MPO End-Face 3D Interference Index

Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000 \
ROC-Y(ABS) 50mm \
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip: SM N/A N/A
MM -200nm 300nm

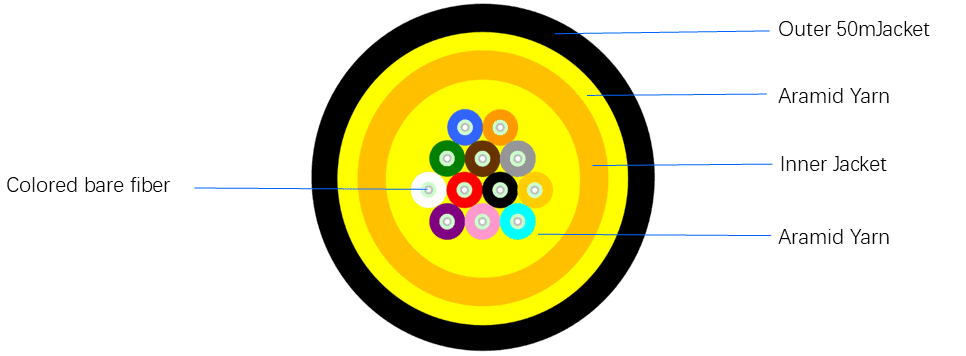

Cable Technical Data



Fiber Cable Parameters

Items Parameters
Fiber count 12,9/125μm, G657A2
Colored Coating Fiber Diameter 250μm±15μm
Color Blue、Orange、Green、Brown、Gray、White、Red、

Black、Yellow、Purple、Pink、Aqua

Inner Jacket Diameter 3.0mm±0.1mm
Material LSZH
Color Yellow or White or Black or Others
Strength Member Aramid Yarn
Outer Jacket Diameter 5.0mm±0.2mm
Material LSZH
Color Black



Mechanical and Environmental Characteristics

Items Unite Specifications
Span Lewngth M 50
Tension(Long Term) N 300
Tension (Short Term) N 600
Crush(Long Term) N/10cm 300
Crush(Short Term) N/10cm 1000
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Operating Temperature -20~+60
Storage Temperature -20~+60



Connector Optical Specifications

Type Mini IP MPO/APC (Female) 12F
Insertion loss Max. ≤ 0.35 dB
Return loss ≥ 60 dB
Tensile strength between optical cable and connector Load: 300N   Duration: 5s
Water proof IP67

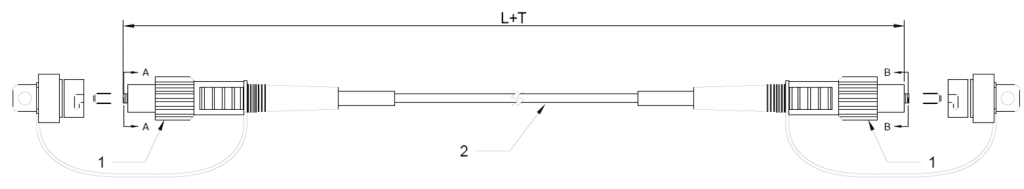

Length Tolerance

Overall Length(L) (m) length of tolerance (cm)
10<L<40 +15/-0
40<L +0.5% x L/-0
