In modern optical communication systems, fiber optic connectors are like “toll booths” on information highways, and SC fast connectors (Subscriber Connectors) have become an indispensable “fast track” in this field with their unique performance advantages. This square-shaped and easy-to-operate connector is silently supporting our digital life in hundreds of millions of optical fiber networks around the world.

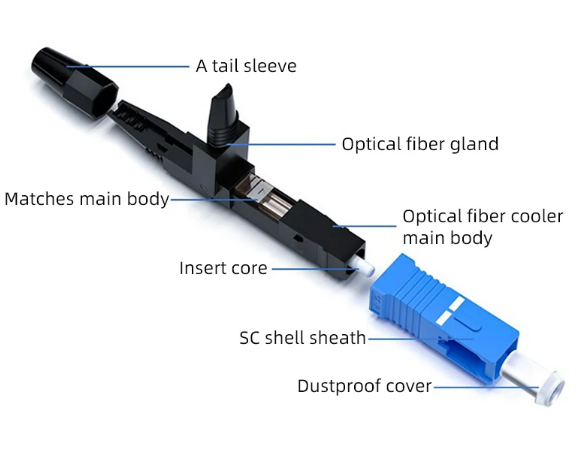

1. Design philosophy: fast, accurate, and stable
The SC fast connector uses a 2.5mm precision ceramic ferrule, which is equivalent to the size of an automatic pencil lead but can achieve submicron docking accuracy. Its iconic square buckle structure subverts the traditional thread-tightening method and the push-pull operation can shorten the connection time to less than 0.8 seconds, which is more than 3 times faster than the traditional FC connector. This “plug-and-play” feature allows technicians to easily operate in a small cabinet.

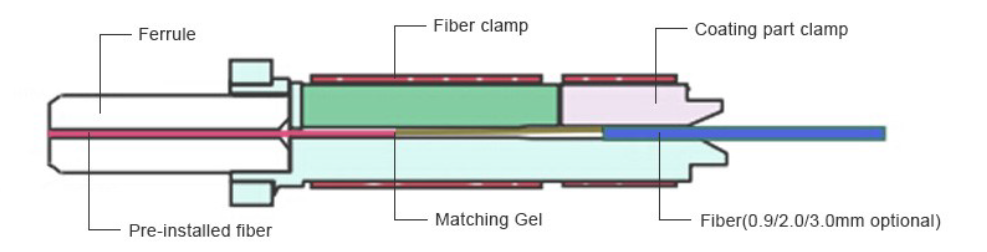

The innovative dual positioning system is its core technology: the physical positioning of the ceramic ferrule ensures the precise alignment of the optical fiber core, and the mechanical positioning of the shell ensures the overall stability of the SC fast connector. This double insurance design allows the insertion loss to be controlled within 0.3dB, which is equivalent to a signal strength loss of only 7%, and the return loss reaches the military-grade standard of more than 40 dB.
2. Performance comparison: multi-scenario adaptability

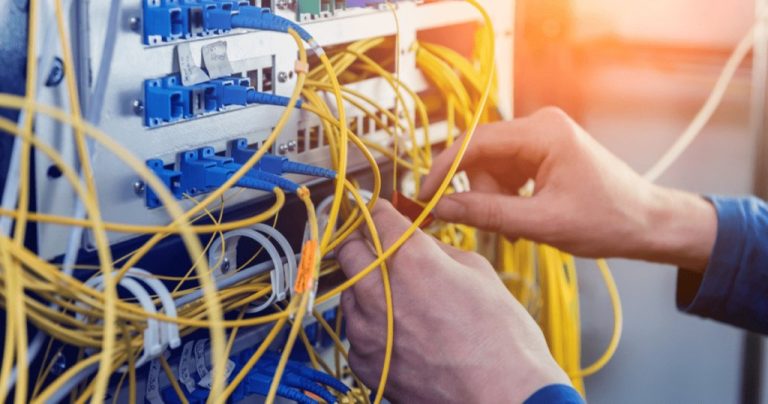

In data center racks, the compact design of SC provides better protection against false touches than LC connectors; in outdoor base stations, its seismic performance is 60% higher than that of ST connectors; in the field of radio and television, the plug-in life of up to 1,000 times is twice that of FC connectors. This all-round performance has enabled its market share in FTTH fiber-to-the-home projects to exceed 75%.
Especially in 5G fronthaul networks, the rapid deployment characteristics of SC fast connectors are very useful: a single base station requires 6-12 core connections, and the use of SC prefabricated jumpers can increase installation efficiency by 40%. It supports APC bevel polishing type, which is more perfectly adapted to the physical topology requirements of GPON systems.
3. Technological evolution: the future of intelligence
The third-generation SC-UNIConnect technology has realized the “blind plug” function, and the offset tolerance has been improved to 1.5μm. The intelligent SC head with an integrated optical power monitoring module can provide real-time feedback of weak signal changes at the level of -40dBm. The application of nano-coating technology reduces the friction of plugging and unplugging by 30% and increases the wear resistance index by 5 times.
In the field of quantum communication, the ultra-low loss SC-Q connector has reached the new industry benchmark of 0.1dB. The hot-swappable optoelectronic hybrid SC++ connector combines power transmission and optical communication into one, heralding the coming of the “one-line” era.
Conclusion
From ordinary household optical modems to submarine optical cable repeaters, from the laser radar of self-driving cars to the communication system of space stations, SC fast connectors continue to interpret the technological legend of “small devices with great achievements”. With the breakthrough of silicon photonics technology, the SC connector supporting 800Gbps transmission in the future may break the size limit and write a new chapter of optical connection on a more microscopic scale. This seemingly simple square connector is reshaping the way humans connect to the world.
