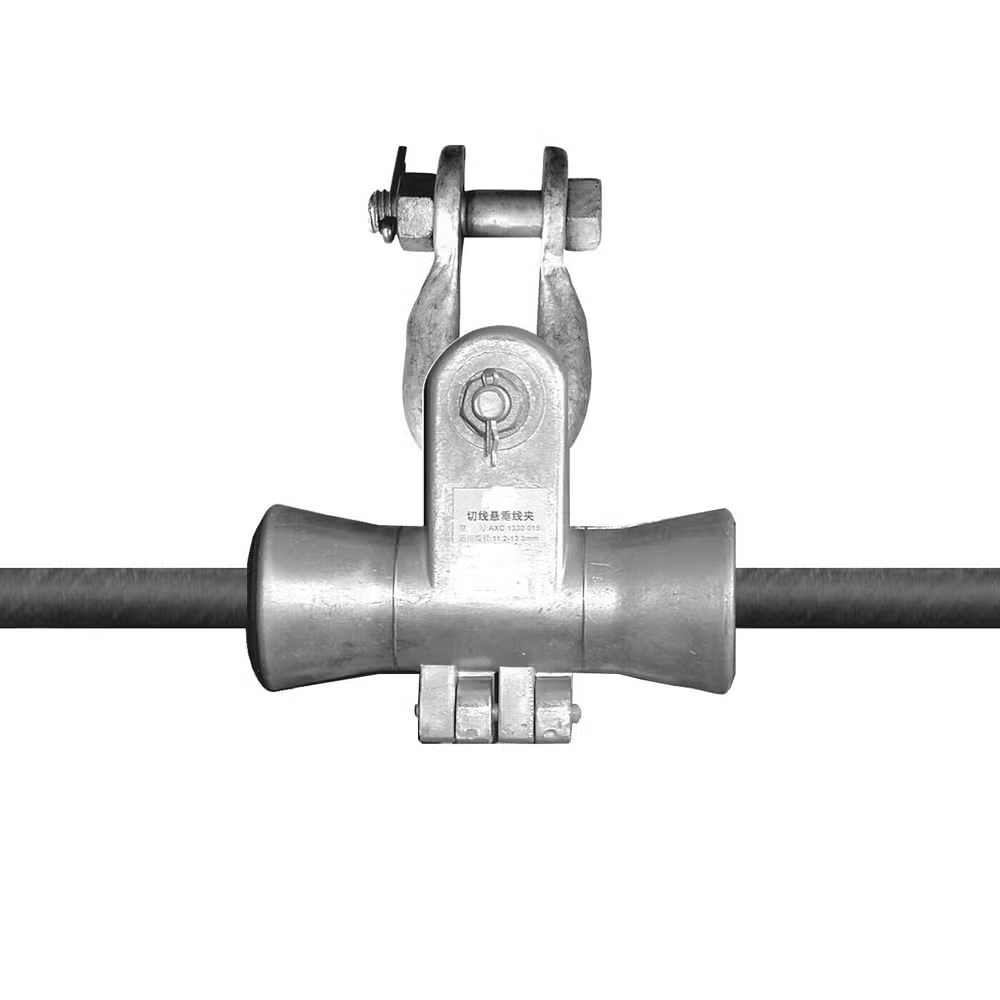

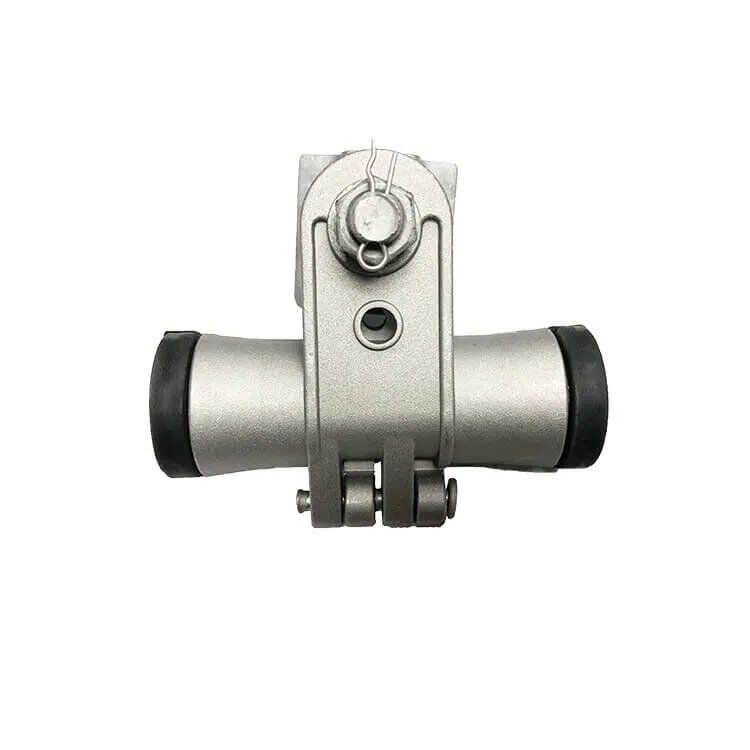

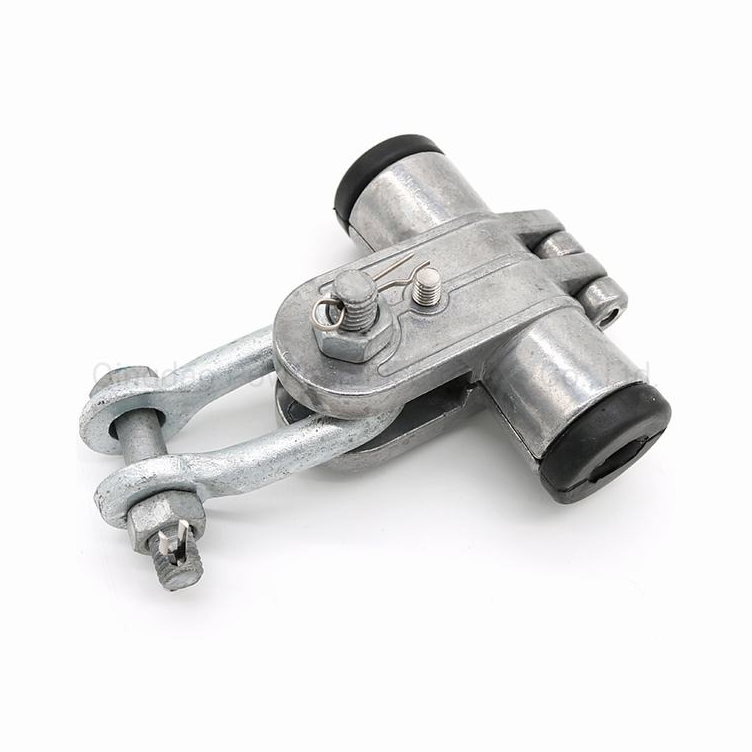

Suspension Clamp
Fiber Optic Suspension Clamp: A Stable Guardian of Overhead Optical Cables
Fiber suspension clamp is a connection fitting designed for overhead optical cables, used to hang optical cables on transmission line towers. It can not only effectively disperse the static stress of optical cables at the suspension point, but also improve the vibration resistance of optical cables, suppress the dynamic stress of wind vibration, and ensure that the optical fiber in the optical cable will not produce additional losses due to bending stress.
The Features of Fiber Suspension Clamps
Evenly distributed stress
The fiber suspension clamp has a large contact area with the optical cable, uniform stress distribution, no stress concentration point, and at the same time enhances the rigidity of the optical cable at the hanging point, which plays a better protective role.
Strong dynamic stress bearing capacity
the fiber suspension clamp can provide sufficient grip (18%UTS) to protect the optical cable from running safely under unbalanced load conditions.
Enhanced self-damping
The structure of fiber suspension clamp is equipped with a flexible rubber clamp block to enhance self-damping and reduce wear.
Excellent material
The use of high-quality aluminum alloy material improves the mechanical properties and anti-corrosion properties of the clamp, greatly extending its service life.
Easy installation
No need for fixed installation tools, maintenance-free, and reduced construction costs.
Main Classification of Fiber Optic Suspension Clamps

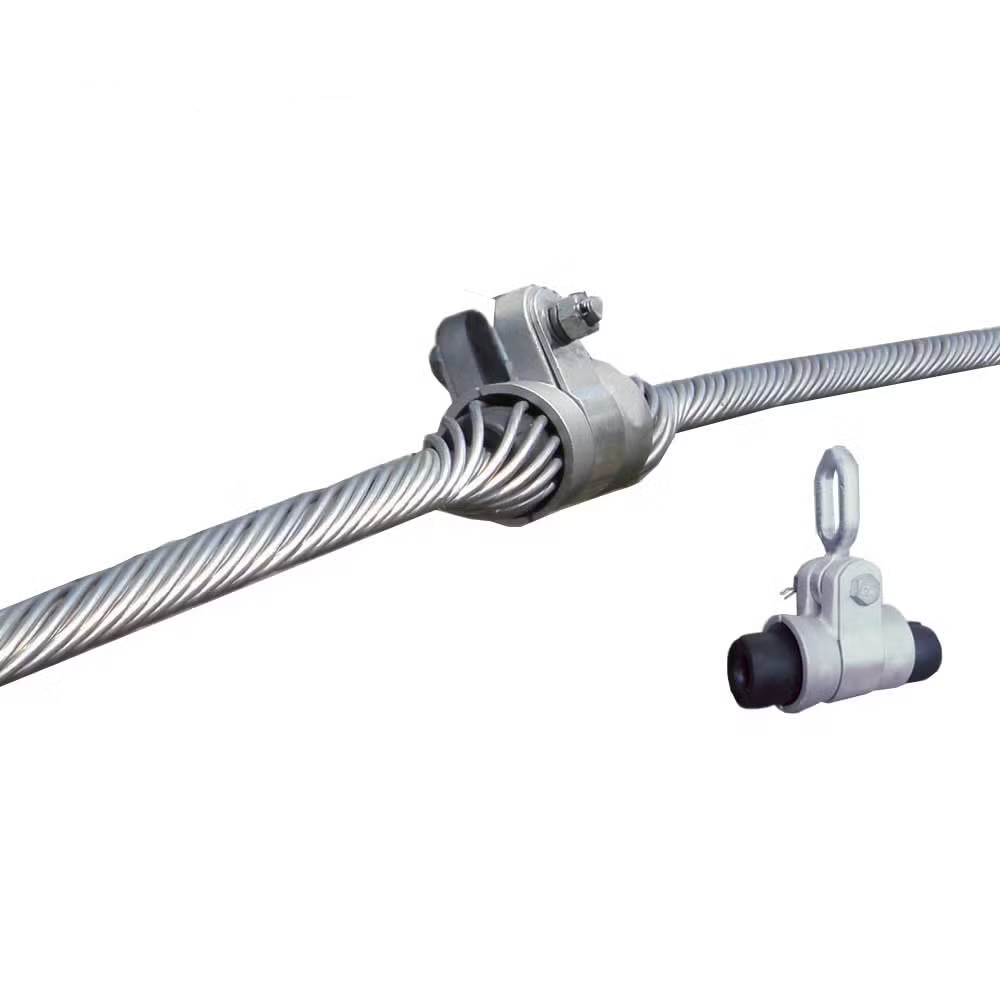

Pre-twisted suspension clamp for OPGW optical cable
Applicable cable diameter: selected according to the outer diameter of the OPGW optical cable
Applicable optical cable span: selected according to specific needs
Composition: inner twisted wire, outer twisted wire, U-shaped hanging ring, right-angle hanging ring, suspension sleeve, grounding wire, etc.

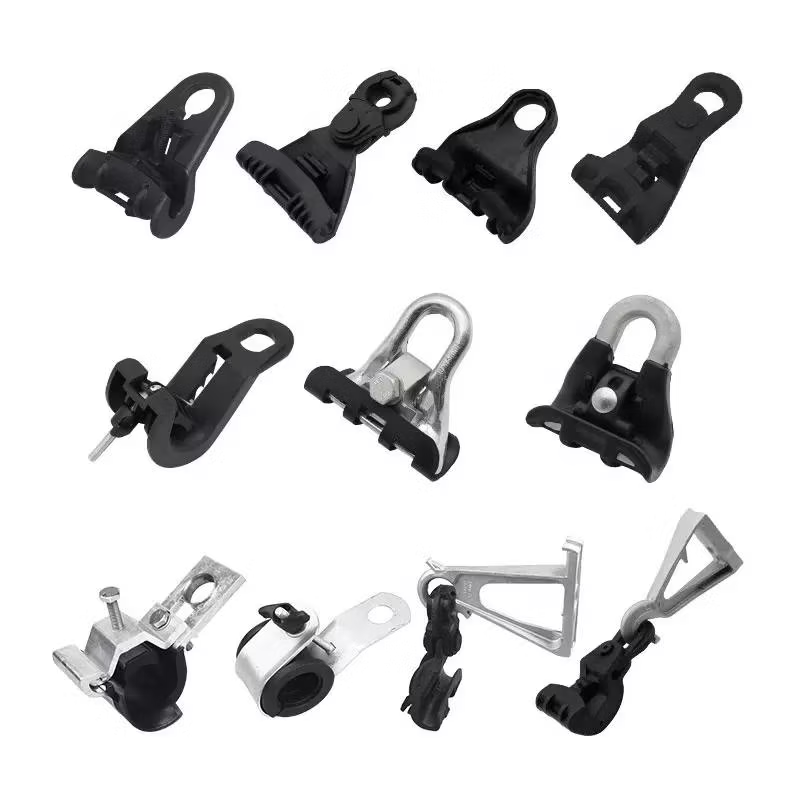

Suspension clamp for ADSS optical cable
Small span suspension clamp: mainly used for optical cable installation within a span of 100m.
Single-layer pre-twisted wire suspension clamp: mainly used for optical cable installation within a span of 100m~200m.
Single suspension clamp: if a double-layer pre-twisted wire design is used, it is generally used for suspension of a span of more than 200m.
Double suspension clamp: mainly used for the suspension or support of straight towers with high drop and span greater than 800 meters or line angle greater than 30°.
Product Application
OPGW optical cable: Applicable to transmission lines of various voltage levels, can effectively protect optical cables and extend their service life.
ADSS optical cable: Applicable to the installation of optical cables within a span of 100m to 200m, as well as special cases with high drop, large span, or line angle greater than 30°.
Why choose OMC
Full range of models and specifications: Full range of fiber suspension clamp models and specifications, including power optical cable fittings, composite ground cable fittings, and pre-twisted wire fittings for various conductors.
High-quality service: Reliable product quality and high-quality service.
Short delivery time: Short product delivery time and fast logistics delivery save your precious time.
Choose our fiber suspension clamps to ensure the safe, stable and reliable operation of your overhead optical cable.
