Unibody LC Patch cable

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



Share to:

Description

Unibody LC Patch cord/Pigtail is a new kind of LC patch cables which assembled with our New generation UNIBODY LC connector. As everyone knows that traditional LC housing included 2pieces. But our Unibody LC is just one piece. The first advantage is much stable and can withstand bigger surface impact force than standard LC. Of course, this Unibody LC connector have more advantages. At the same time, It has a flexible Clip, can be assembled and unassembled easily. So good for polarity changeable and Simplex&Duplex changeable.



Advantages

Standard LC housing kits, Two Pieces.  Must assembly together to use

With Chinese independent intellectual property rights. Unibody LC housing kits, one Pieces Design, Much stable and can withstand bigger surface impact force , Stable Connection guarantee.

Standard LC  with a long boot. Total is 52mm

Unibody  LC  with a short  boot. Total is 42mm,

Good for HD Cabling and save space

Standard LC clip is almost Fully closed,Hard to assembly and unassembled,

Unibody LC Flexible clip is Semi-closed, Easy to Assembly and unassembled. So good for polarity changeable and Simplex&Duplex changeable.

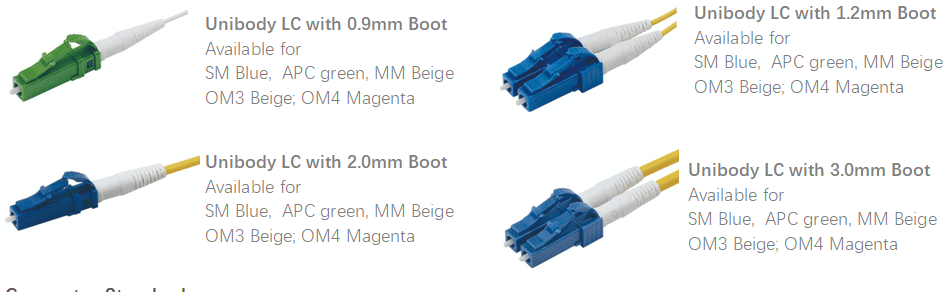

The Clip is available for 0.9-3.0mm boot.



Perfect match with Standard LC ferrule,  No need to develop special LC ferrule flange, Save cost

High quality SM Ceramic ferrule, Good concentricity<0.5um

High quality MM Ceramic ferrule, Good concentricity<4.0um



Products Details



Features

  • High quality zirconia ferrules.
  • Good repeatability and interchange.
  • Flame-retardant, rugged and durable jacket.
  • 100% optically tested for insertion loss to ensure high quality





Specification

Optical Specifications-Standard  quality

Insertion loss ≤0.25dB Mean (Standard) Interchangeability ≤0.2dB
Return loss SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

Vibration ≤0.2dB
Polarity A(Tx) to B(Rx) Maximum pulling force 100N



Optical Specifications-IEC Grade B quality

Insertion loss ≤0.12dB mean, ≤0.25dB max.

for >97% of sample

Interchangeability ≤0.2dB
Return loss SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

Vibration ≤0.2dB
Polarity A(Tx) to B(Rx) Maximum pulling force 100N



Geometric Specification( if Customer requested)

Items Parameter
Polishing PC APC
ROC LC 7~ 25 5 ~ 12
Apex Offset ≤ 50
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5

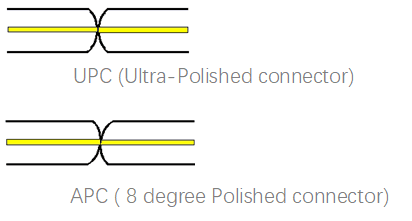

Polishing Method



End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

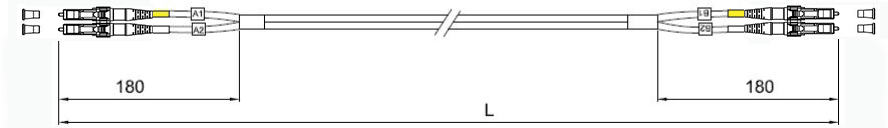

Length Tolerance

Overall Length (L)(m) length of tolerance (cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Standard Compliance

  • TIA 604 (FOCIS)
  • TIA/EIA 492AAAE
  • IEC 61754
  • IEC 60793-2-10
  • IEC61300-3-35
  • YD/T1272.1-2003
  • RoHS, ISO9001 Compliant



Application

  • Data Center
  • Enterprise
  • Fiber to the X (FTTX)
  • LAN and WAN
  • CATV Network
  • Telecommunications Network
